Tuneable Edge Detector (KT01)
This is a more sophisticated Edge Detector robot. It's like the Basic Edge Detector, but you can "tune" it using the Knob Cubelet. You'll need a Knob and a Minimum Cubelet, which aren't in the KT06 kit.
- Battery Block
- Knob Block
- Distance Block
- Drive Block
- Passive Block
- Minimum Block
- Start with the Basic Edge Detector robot: a Battery, Drive, and Distance Cubelet in a line.
- Take the Knob Cubelet and attach it to the Minimum Cubelet, knob facing up.
- Attach the bottom of the Minimum Cubelet to the top of the Drive Cubelet, making a little tower in the middle of the robot.
- Now relocate the Distance Cubelet one cube space up, attaching to the side of the Minimum Cubelet.
- Next add the Passive Cubelet on top of the Battery, to balance the robot so it doesn't tip over.
- Finally, you'll need to tune the robot by adjusting the Knob. The robot should move slowly when it's on the surface, and stop when the Distance Cubelet is over the edge.

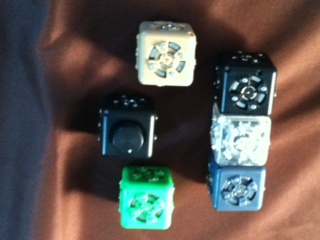

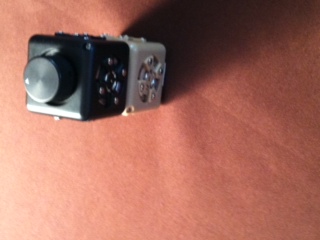

| You'll need these Cubelets. | The Knob-Minimum tower |

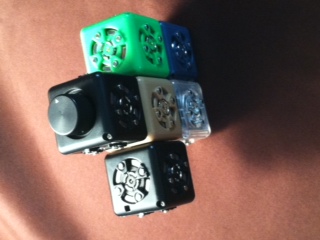

| Tuneable Edge Detector |
